Automatic border box on label

Tagged: , , ,

This topic contains 1 reply, has 1 voice, and was last updated by  Bruce Walker 6 months, 3 weeks ago.

  • Author
    Posts
  • #18677

    Bruce Walker
    Participant

    I’m writing my own surfaces label, with a diamond border. However, when I turn on the leader, Archicad draws a rectangular box around my label.

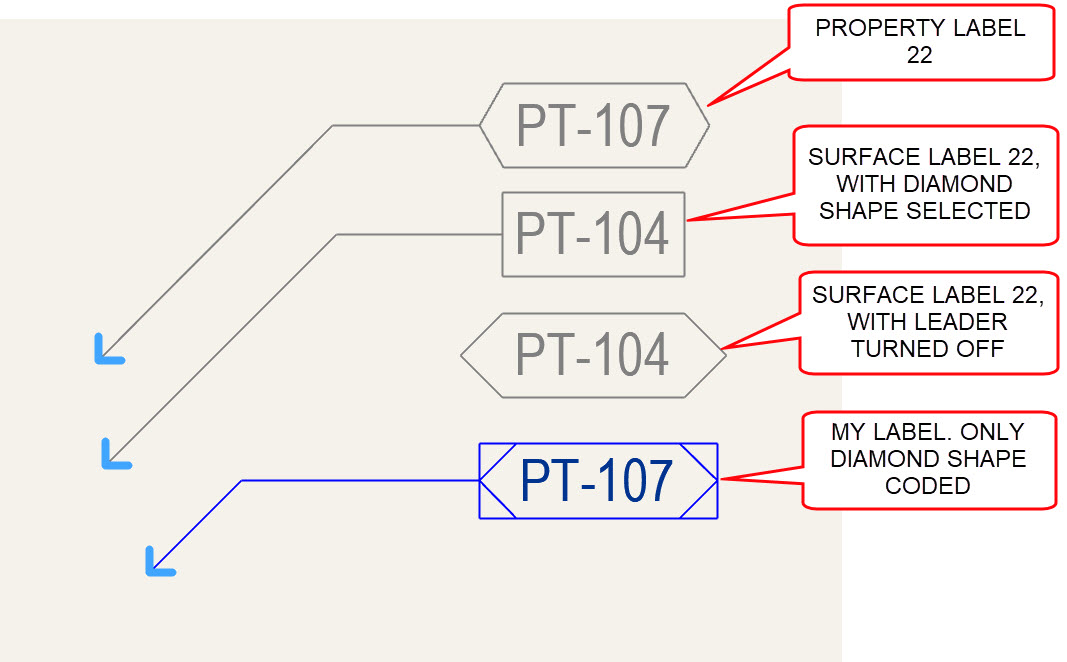

    I’ve checked the Surface Label 22, and it has a similar issue, but the Property Label 22 does not. See the attached image for what I mean.

    How do I stop this rectangular box from being drawn?

  • #18679

    Bruce Walker
    Participant

    Found it.

    I needed to create a boolean parameter called “ac_bDisableLabelFrameDisplay” and turn it on. Problem solved.
