Orientation Of a Custom Curtain Wall Junction

Home Forums General discussions Orientation Of a Custom Curtain Wall Junction

This topic contains 1 reply, has 2 voices, and was last updated by  Gergely Fehér 2 weeks ago.

  • Author
    Posts
  • #4337

    Lewis Shephard
    Participant

    Hello,

    I have a custom curtain wall junction, and am just curious as to how in GDL you would determine/change the orientation of the component?

    Regards,
    Lewis Shephard.

    Support Technician

  • #4349

    Gergely Fehér
    Keymaster

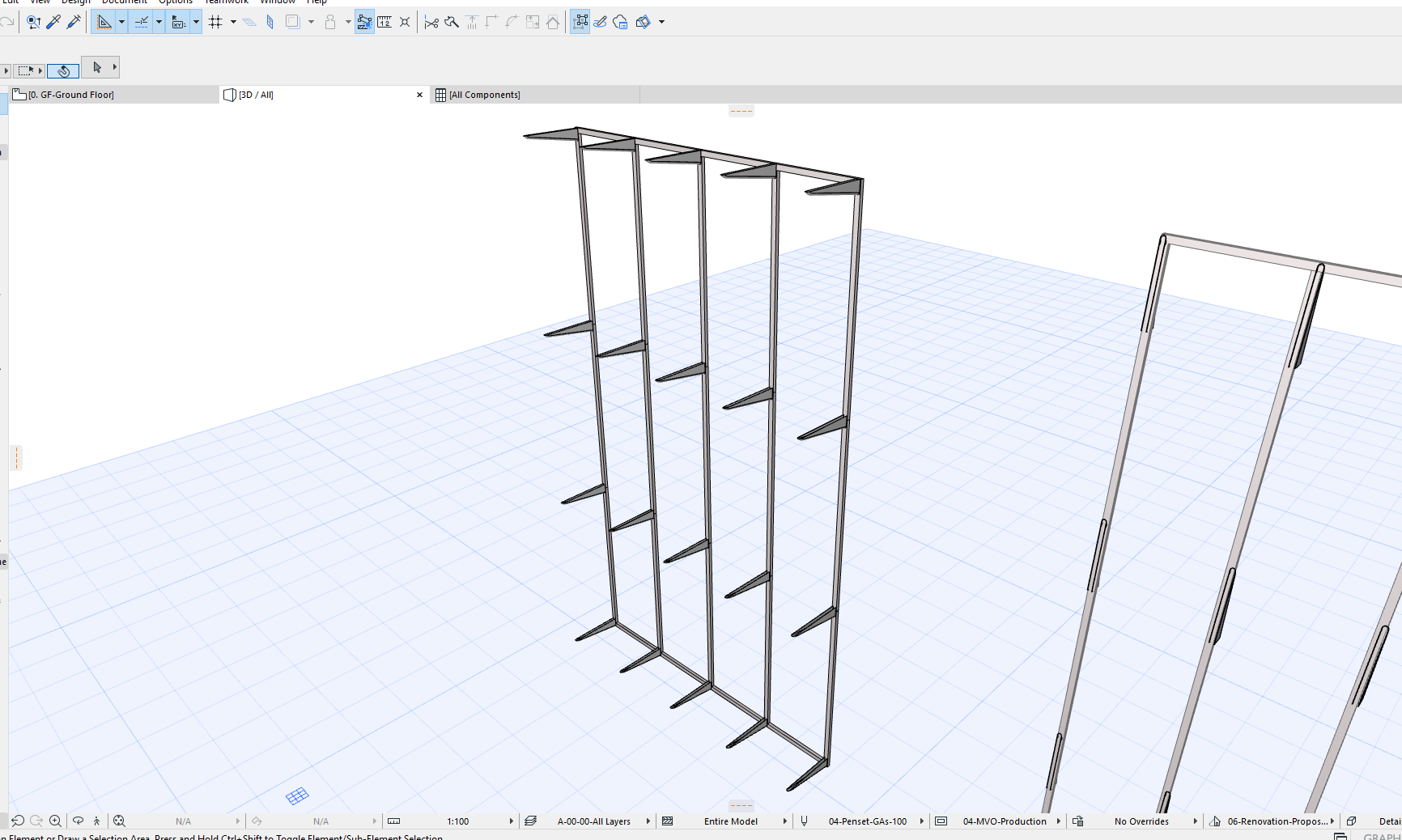

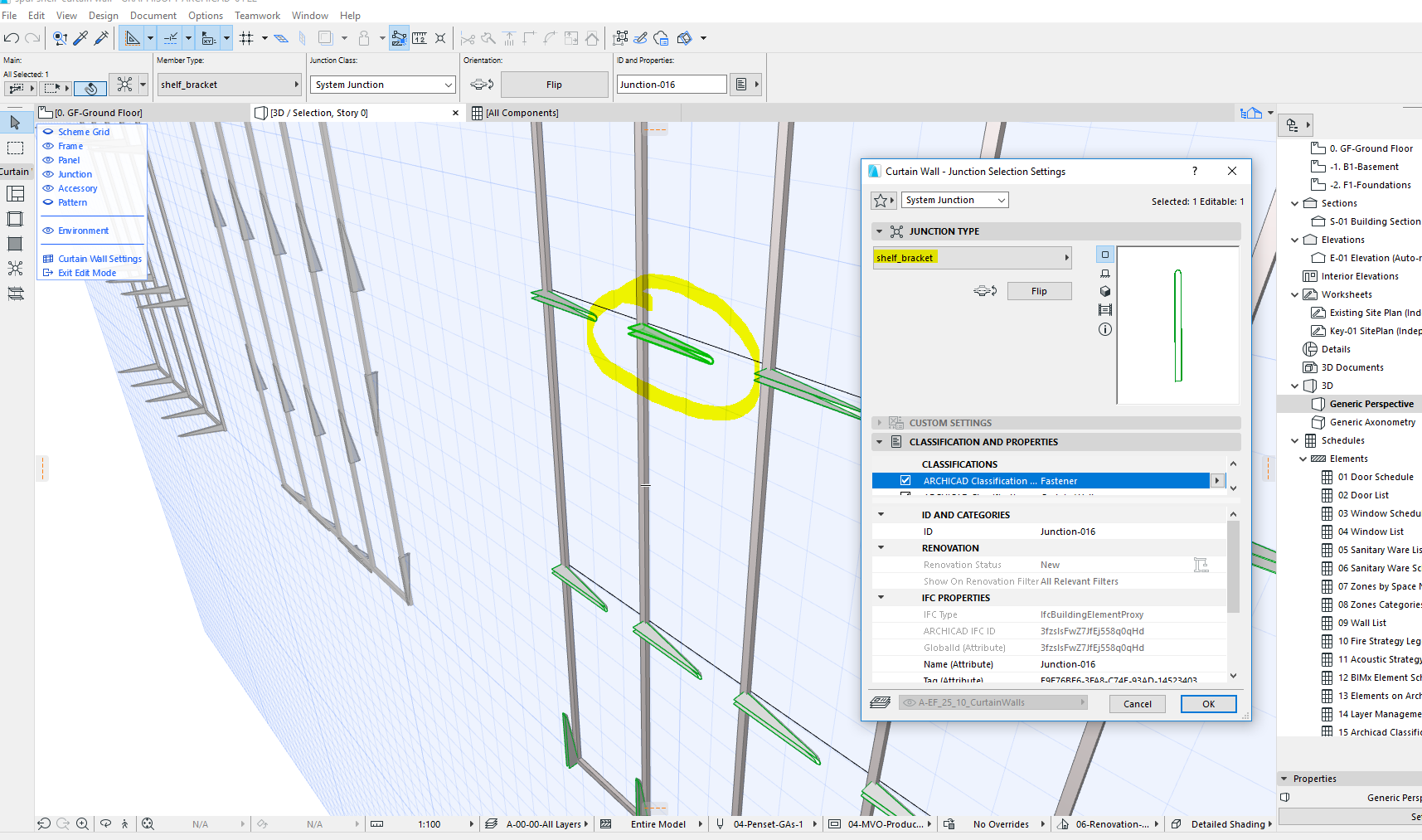

    The “Z” direction is always perpendicular to the curtain wall. The junction element only knows this, and the numer of frames at it’s anchor and their direction. Everything should be calculated based on this. Creating a series of elements shown on the images seems to be easier with accessory elements.

    Gergely Fehér
    Team Leader, Library Team
    GRAPHISOFT SE
