Projected opening has unwanted fill

Home Forums Problems and solutions in GDL Doors and windows Projected opening has unwanted fill

This topic contains 3 replies, has 2 voices, and was last updated by  Tomasz Mlynarski 3 months, 3 weeks ago.

  • Author
    Posts
  • #4546

    Tomasz Mlynarski
    Participant

    I made a simple wall arch top wall niche.

    I don’t want to make a symbol so I set the floor plan view to projection.

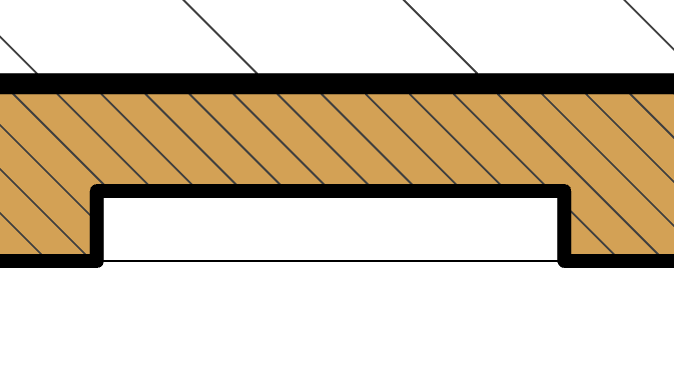

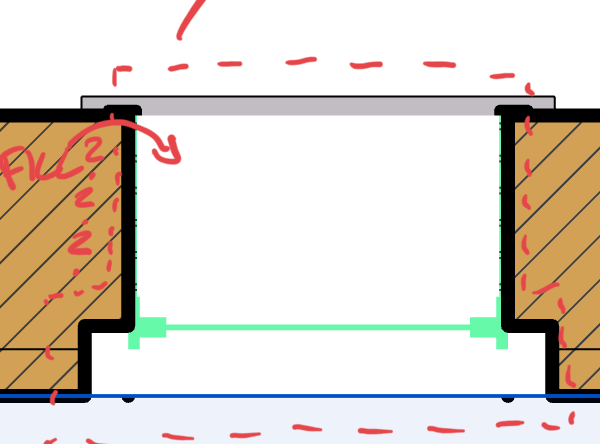

    The niche creates a fill that covers my window and I can’t seem to find any setting to get rid of it.

    -Tom

  • #4554

    Gergely Fehér
    Keymaster

    I think if there in no wallhole/wallniche commands in 2d, AC automatically thinks it should create a fill for the windows’ 2d. So I suggest to create a simple symbol for your object.

    Gergely Fehér
    Team Leader, Library Team
    GRAPHISOFT SE

  • #4555

    Gergely Fehér
    Keymaster

    I think if there in no wallhole/wallniche commands in 2d, AC automatically thinks it should create a fill for the windows’ 2d. So I suggest to create a simple symbol for your object.

    Gergely Fehér
    Team Leader, Library Team
    GRAPHISOFT SE

  • #4564

    Tomasz Mlynarski
    Participant

    Thanks for the tip

    -Tom
