    How do you control the polycount on a REVOLVEDSHELL? RESOL and TOLER don’t seem to have any effect.

    www.brucepwalker.com
    https://www.mindmeister.com/65450406

    AC20 6005 AUS Full & AC 21 3009 NZE Full | Win 10 Pro 64 | Intel i7-7700HQ 2.80GHz | 16 Gb RAM
    NVIDIA GeForce GTX 1060 8Mb

  • #4680

    Péter Baksa
    Participant

    Hi, try REVOLVEDSHELLANGULAR. Does it do what you need?

    Péter Baksa
    Software Engineer, Library Team
    GRAPHISOFT SE

  • #4683

    Bruce Walker
    Participant

    Thanks Péter, I’ll give it a go.

    www.brucepwalker.com
    https://www.mindmeister.com/65450406

    AC20 6005 AUS Full & AC 21 3009 NZE Full | Win 10 Pro 64 | Intel i7-7700HQ 2.80GHz | 16 Gb RAM
    NVIDIA GeForce GTX 1060 8Mb

  • #4703

    Bruce Walker
    Participant

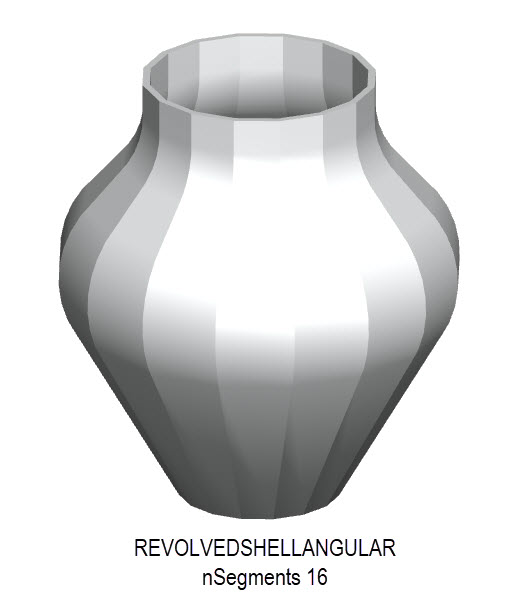

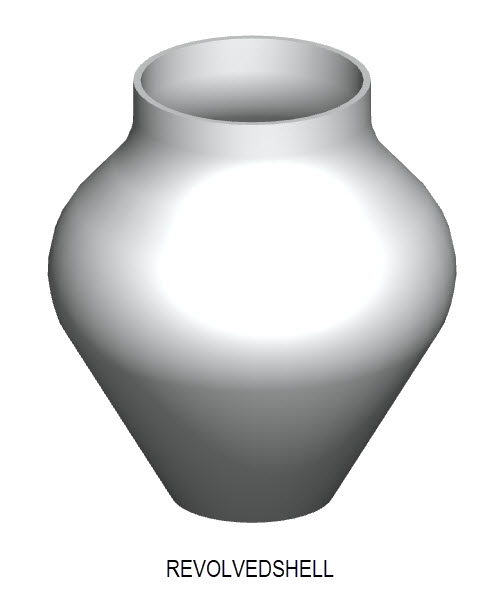

    I gave this a go, but not quite the results I was looking for. I need to reduce the polycount, but still have a smooth appearance. Similar to what a REVOLVE will look like. See attached images.

    www.brucepwalker.com
    https://www.mindmeister.com/65450406

    AC20 6005 AUS Full & AC 21 3009 NZE Full | Win 10 Pro 64 | Intel i7-7700HQ 2.80GHz | 16 Gb RAM
    NVIDIA GeForce GTX 1060 8Mb

  • #4706

    Bruce Walker
    Participant

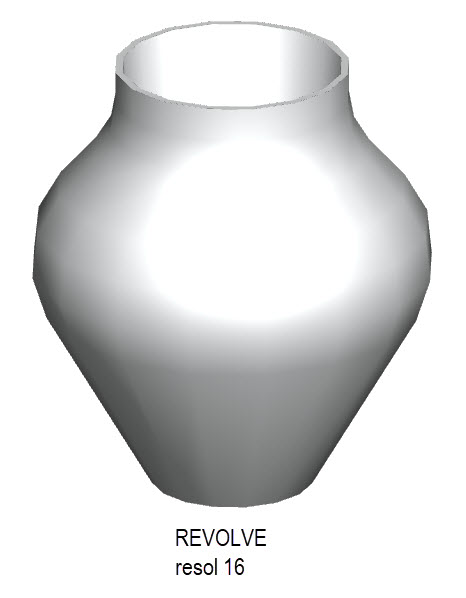

    The same vase with a REVOLVE

    www.brucepwalker.com
    https://www.mindmeister.com/65450406

    AC20 6005 AUS Full & AC 21 3009 NZE Full | Win 10 Pro 64 | Intel i7-7700HQ 2.80GHz | 16 Gb RAM
    NVIDIA GeForce GTX 1060 8Mb

  • #4710

    Péter Baksa
    Participant

    Maybe REVOLVEDSHELLANGULAR{2} with status 2?

    Péter Baksa
    Software Engineer, Library Team
    GRAPHISOFT SE

  • #4717

    Bruce Walker
    Participant

    No – same result. There doesn’t seem to be a way to smooth the edges, like you can do with a REVOLVE, without massively increasing the polycount.
