Wall contour with reveal depth

Home Forums Problems and solutions in GDL Doors and windows Wall contour with reveal depth

This topic contains 1 reply, has 2 voices, and was last updated by  Dominika Bobály 1 year, 2 months ago.

  • Author
    Posts
  • #2715

    Bruce Walker
    Participant

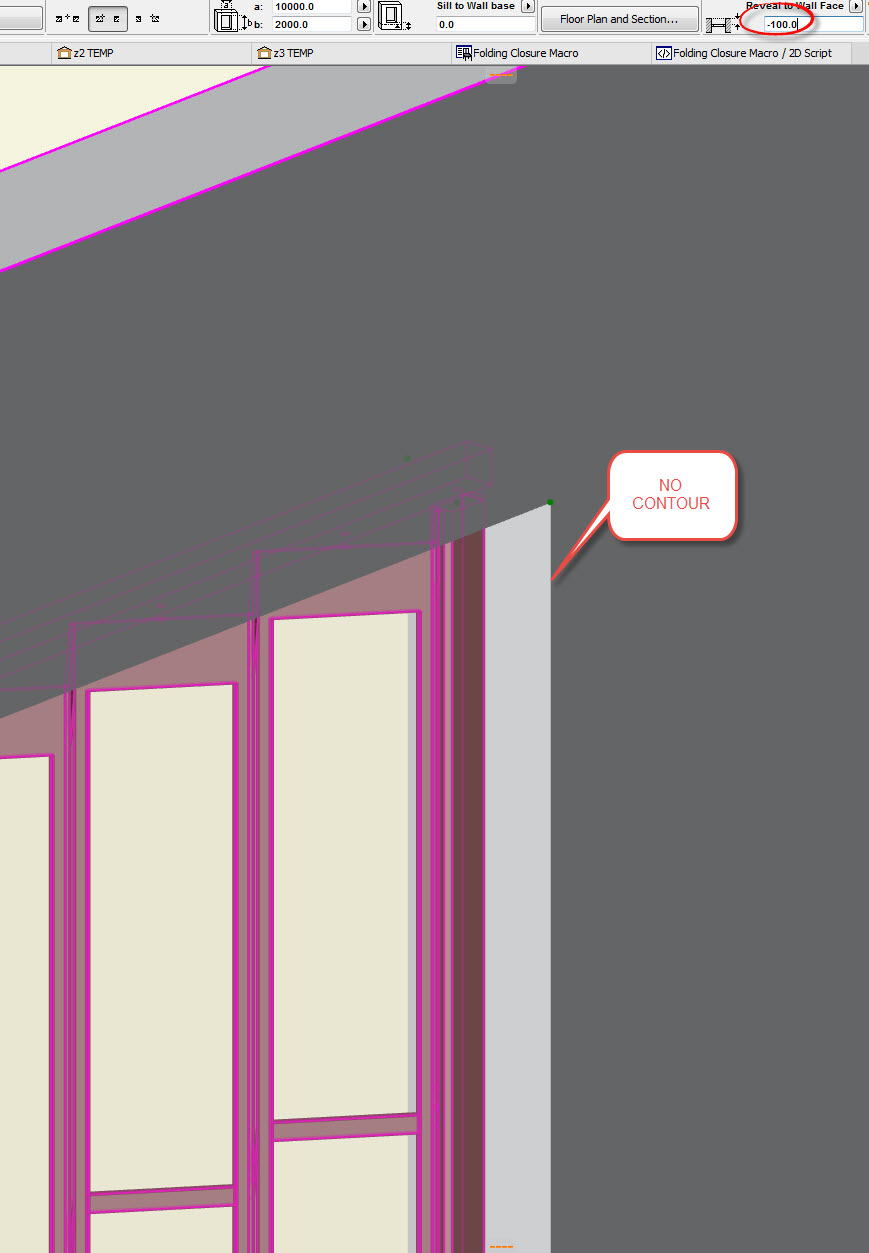

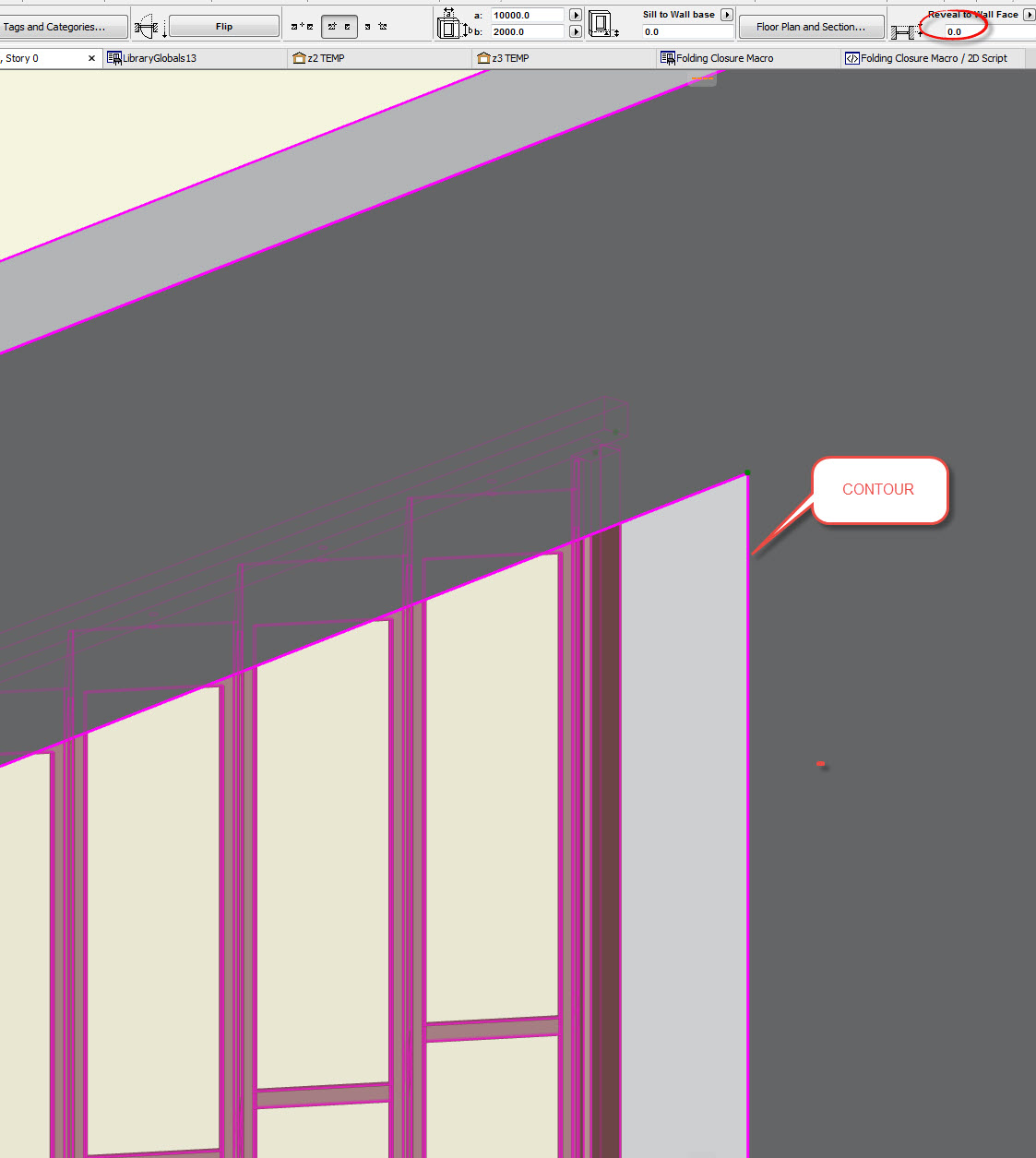

    How do I get the wall contour to show when the reveal depth is <>0?

    www.brucepwalker.com
    https://www.mindmeister.com/65450406

    AC20 6005 AUS Full & AC 21 3009 NZE Full | Win 10 Pro 64 | Intel i7-7700HQ 2.80GHz | 16 Gb RAM
    NVIDIA GeForce GTX 1060 8Mb

  • #2742

    Dominika Bobály
    Keymaster

    All 3D wallhole cut commands have similar status codes for each node as PRISM. Have you tried modifying those?

    Dominika Bobály
    Library Developer, Library Team
    GRAPHISOFT SE
