Wall contour with WALLHOLE2

Home Forums Problems and solutions in GDL Doors and windows Wall contour with WALLHOLE2

Viewing 4 reply threads
  • Author
    Posts
    • #1718
      James Murray
      Participant

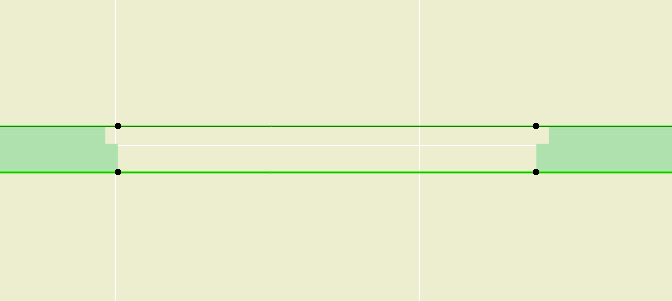

      When using WALLHOLE2, how do you get the wall contour line at the ends while the MVO is Show Opening Only? The Simple Door Opening shows the lines. The manual says that WALLHOLE2 polygon doesn’t have a contour, but how do you get it?

      James M

    • #1731
      Zsolt Feke
      Participant

      Use the WALLLINE2 command to draw the missing wall lines back. ”Show Opening Only” option does not affect lines created with this command.
      Example can be found in WallholeCut macro in ARCHICAD Library.

      Zsolt Feke
      Library Developer, Library Team
      GRAPHISOFT SE

    • #1732
      James Murray
      Participant

      Perfect, thank you!

      James M

    • #1736
      James Murray
      Participant

      It seems that WALLLINE2 does not respond to DRAWINDEX. I had my heavy cut lines drawn in front, and when I changed LINE2 to WALLLINE2, they fell back. Is there anything to do about this?

      James M

    • #1741
      Zsolt Feke
      Participant

      DRAWINDEX does not affect WALLLINE2 (the same applies to all WALL type component commands). The only way to workaround this is to manipulate scripted order.

      Zsolt Feke
      Library Developer, Library Team
      GRAPHISOFT SE
