      I have a problem with self made corner windows in zone area calculation.
      As seen on the screenshot, there are green areas outside the room (zone)
      and they are overlapping each other as well.
      Has anyone a tip how I can limit the space raed by the zone stamp.

      Attachments:

      GDL Object Developer
      b-prisma
      MAC OSx 10.14

    • #3946
      Joachim Sühlo
      Participant

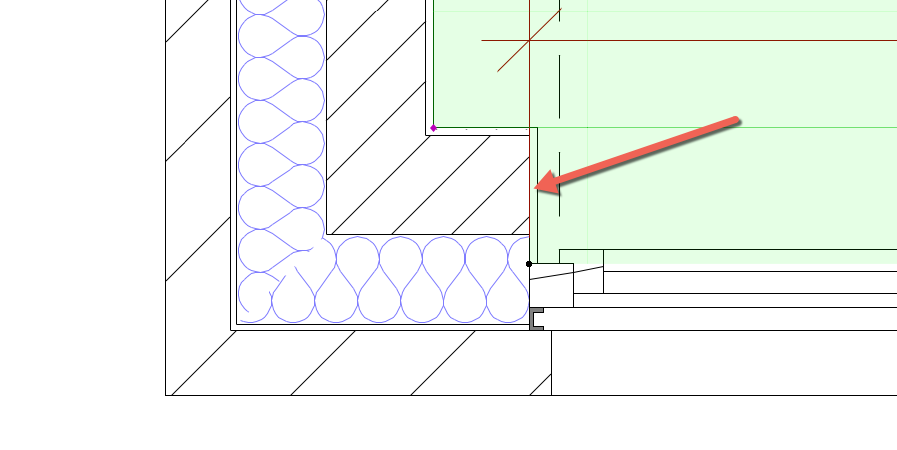

      And how do I reduce the area if I have plaster on the inner reveals, see picture?

      Attachments:

      GDL Object Developer
      b-prisma
      MAC OSx 10.14

    • #3952
      Gergely Fehér
      Keymaster

      Zone always adds a rectangle to the zone, with the width equals with your “A” parameter, and the depth is calculated from the sill depth and frame thickness. You can not change it from GDL, so it won’t be correct in many situations.

      Gergely Fehér
      Team Leader, Library Team
      GRAPHISOFT SE
