Display IFC Properties / Custom Attributes

[Daniel Buchheit]

Hi

we use a Library Element as a kind of BIM-Messenger.

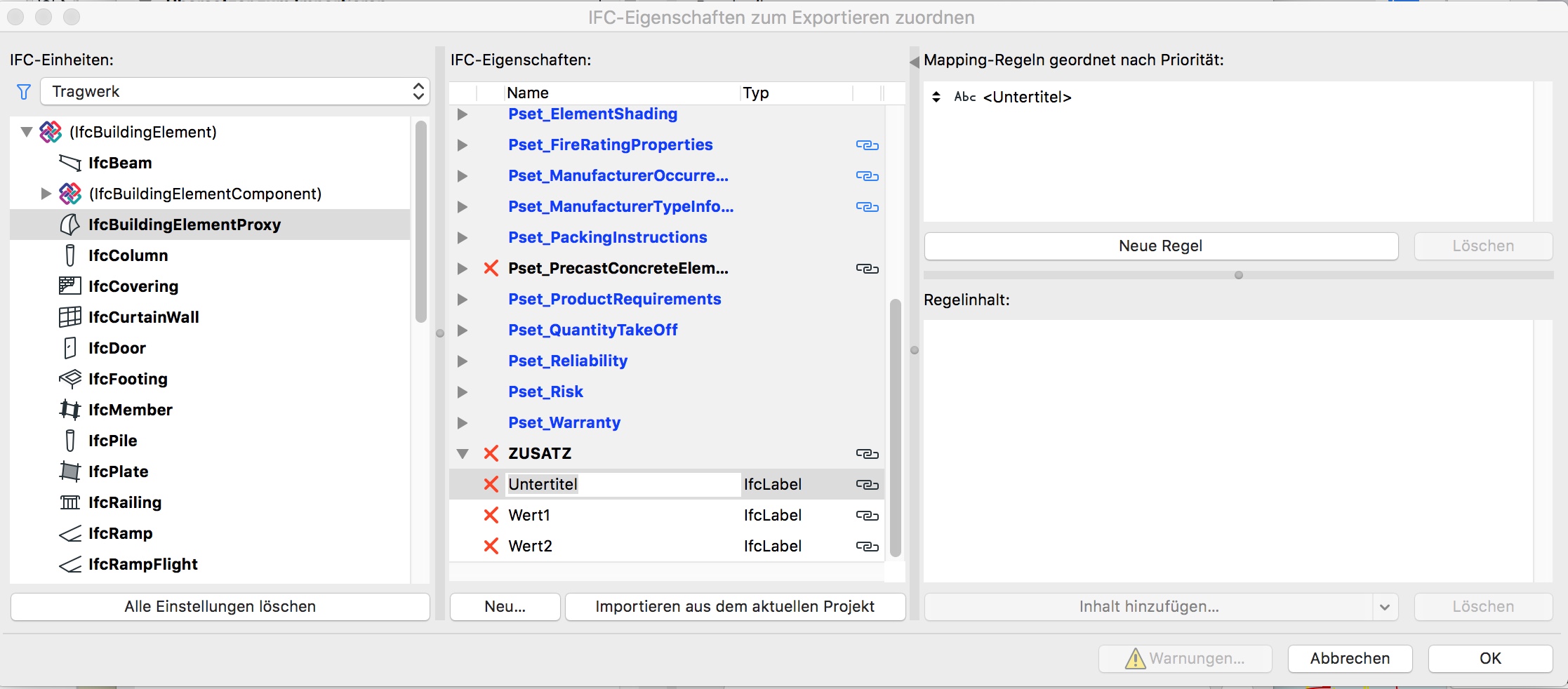

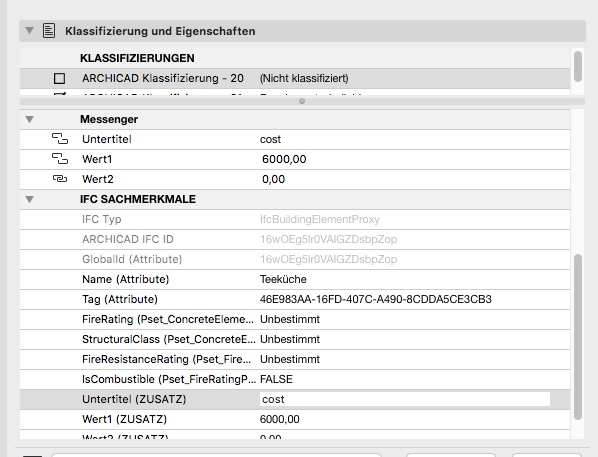

There fore we create an custom-attribute under a chapter Messenger (see attachments Messenger.Untertitel, Messenger.Wert1, Messenger.Wert2), see attachments -> they are assigned to IFC Properties (IFC.Zusatz.Untertitel etc.)

The question is, how can we can we access these custom attributes in a GDL script and how is the connotation?

Something like REQUEST(“Messenger.Untertitel”, “”, Title) or REQUEST(“IFC.ZUSATZ.Untertitel”, “”, Title)?

I would be grateful for some hints, or an example.

Thanks,

Daniel

Attachments:

1.



2.



[Eric Bergquist]

Does anyone have any suggestions for this or know if this is even possible as we are trying to read some ifc parameters into GDL

Thanks

Eric

Archicad 8 then 20-22

[Gergely Fehér]

You can reach the IFC properties with requests, check it here please: https://gdl.graphisoft.com/tips-and-tricks/display-properties-with-labels

Gergely Fehér
Team Leader, Library Team
GRAPHISOFT SE
