Custom door marker

Home › Forums › Problems and solutions in GDL › Documentation elements, text handling › Custom door marker

Tagged:

Viewing 7 reply threads
  • Author
    Posts
    • February 16, 2018 at 16:06 #3812
      Izabela Str
      Participant

      Can someone tell me if it’s possible to edit somehow the script of door marker to change the parameters which are responsible for the viewed dimensions? Is it possible to view with door marker the structure wall-hole dimensions? I mean the construction one. Now it displays the dimensions from finished floor not the structure. I’m asking about this because in the schedule when I add for example ‘Nominal W/D Opening Height on the Reveal Side’ or ‘Nominal W/D Opening Width on the Reveal Side’, displays the values which I need. Is it possible to modify somehow the script to add this dimensions?

      Any clues?

      Cheers,

    • February 16, 2018 at 19:49 #3813
      Bruce Walker
      Participant

      You’ll have to be more specific in your request, as the D Marker 21 already does this. When using, say, “Door 21,” the A & B values represent the wallhole dimensions, with the frame, leaf dimensions, casings etc being inside that. You can set offset and door undercut values already, and dimension the sill.

      Is this not what you were after?

      www.brucepwalker.com
      https://www.mindmeister.com/65450406

      AC20 6005 AUS Full & AC 21 3009 NZE Full | Win 10 Pro 64 | Intel i7-7700HQ 2.80GHz | 16 Gb RAM
      NVIDIA GeForce GTX 1060 8Mb

    • February 19, 2018 at 08:49 #3815
      Izabela Str
      Participant

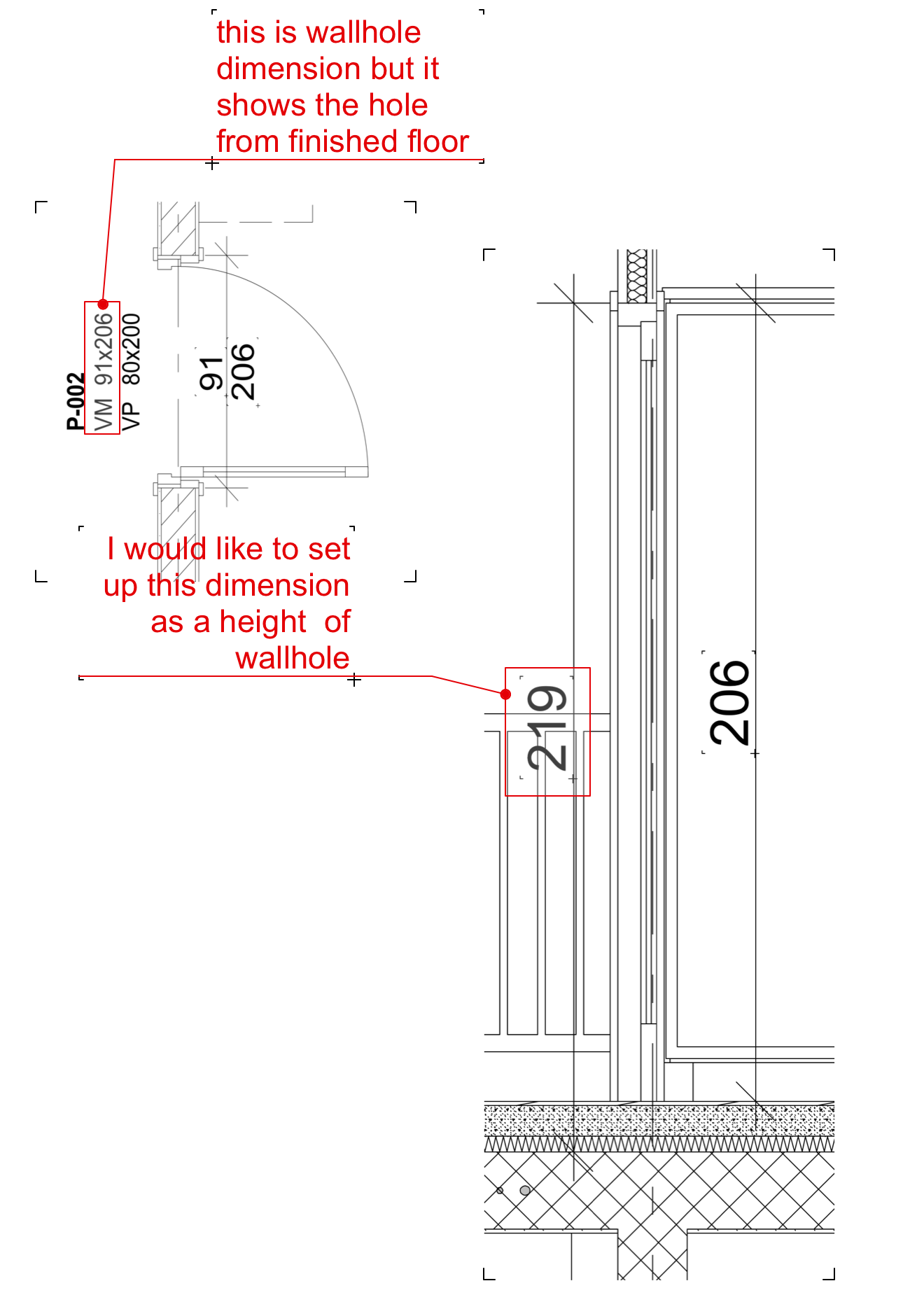

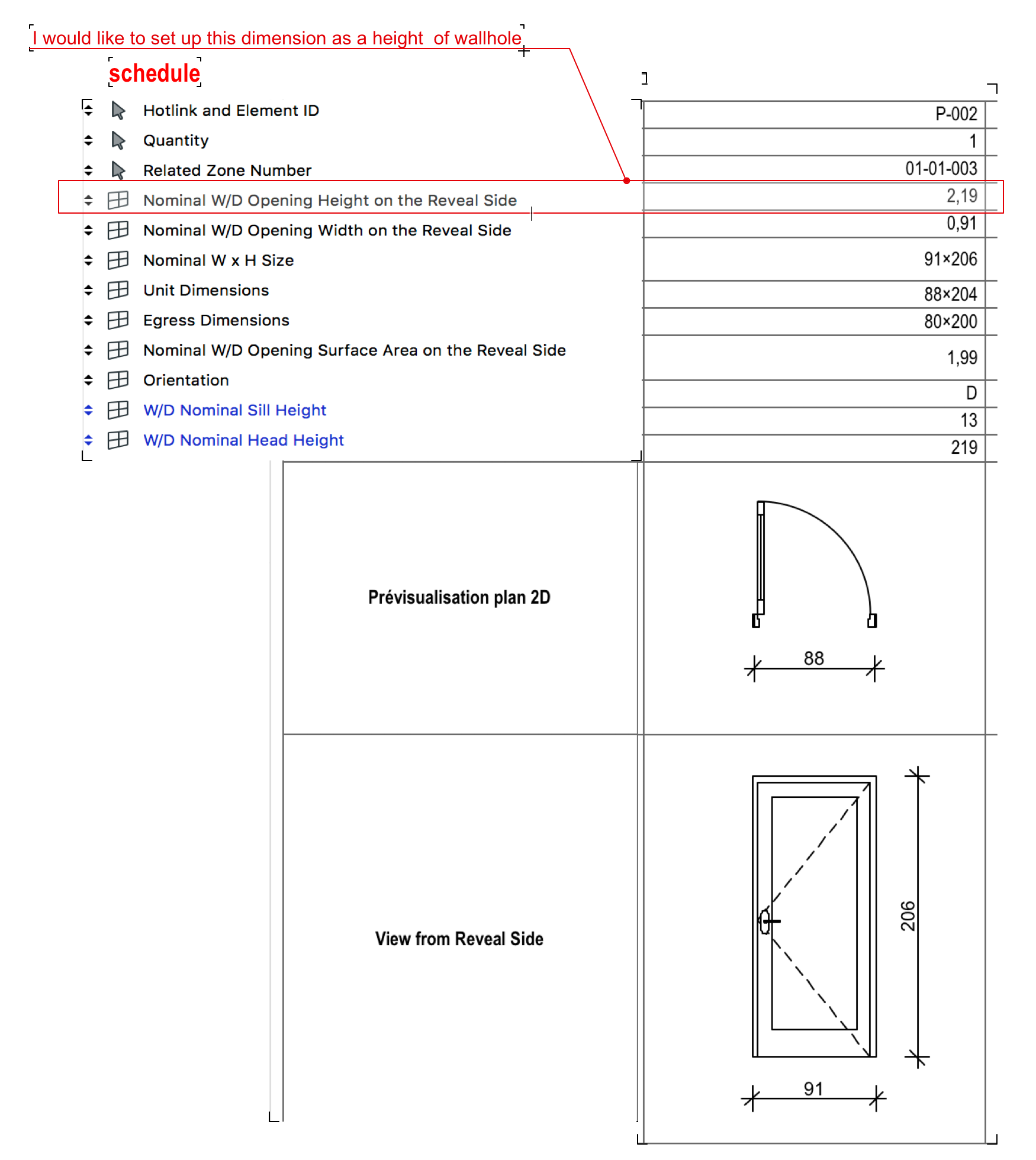

      To be more precisely I’ve added below few preent screens.

      Attachments:

      1. Screen-Shot-2018-02-19-at-08.47.49.png

      2. Screen-Shot-2018-02-19-at-08.48.04.png

    • February 19, 2018 at 08:50 #3818
      Izabela Str
      Participant

      the settings of doors

    • February 19, 2018 at 08:51 #3819
      Izabela Str
      Participant

      the setting of the door one more time

      Attachments:

      1. Screen-Shot-2018-02-19-at-08.51.18.png

    • February 19, 2018 at 12:59 #3823
      Péter Baksa
      Keymaster

      Hi Izabela,

      yes, you can use use ac_wido_oversize_b parameter. The D Marker 21 uses this with ac_wido_subfl_thickness to display the sill height.

      Here is a listing of all available parameters for markers:

      Door and Window Parameters for Markers

      Péter Baksa
      Library Platform, Software Engineer
      GRAPHISOFT SE

    • February 19, 2018 at 14:33 #3824
      Izabela Str
      Participant

      Hi Péter,
      that you for your answer.
      I have one more question. Is this the same with ‘Door Marker 21’?

      • February 20, 2018 at 08:50 #3826
        Péter Baksa
        Keymaster

        I don’t know about Door Marker 21, Door Stamp 21 does this too.

        Péter Baksa
        Library Platform, Software Engineer
        GRAPHISOFT SE

    • February 20, 2018 at 08:53 #3827
      Izabela Str
      Participant

      Thanks.
