project2{3} and SECT_​​FILL command works different in AC18-19 and AC20-21

Home Forums Problems and solutions in GDL Object design project2{3} and SECT_​FILL command works different in AC18-19 and AC20-21

Tagged:

Viewing 2 reply threads
  • Author
    Posts
    • #3961
      Orsolya Almer
      Participant

      Hello!
      I have used the command “project2{3}” and in 3D script I used the sect_fill command for the fill types (in the version AC18)

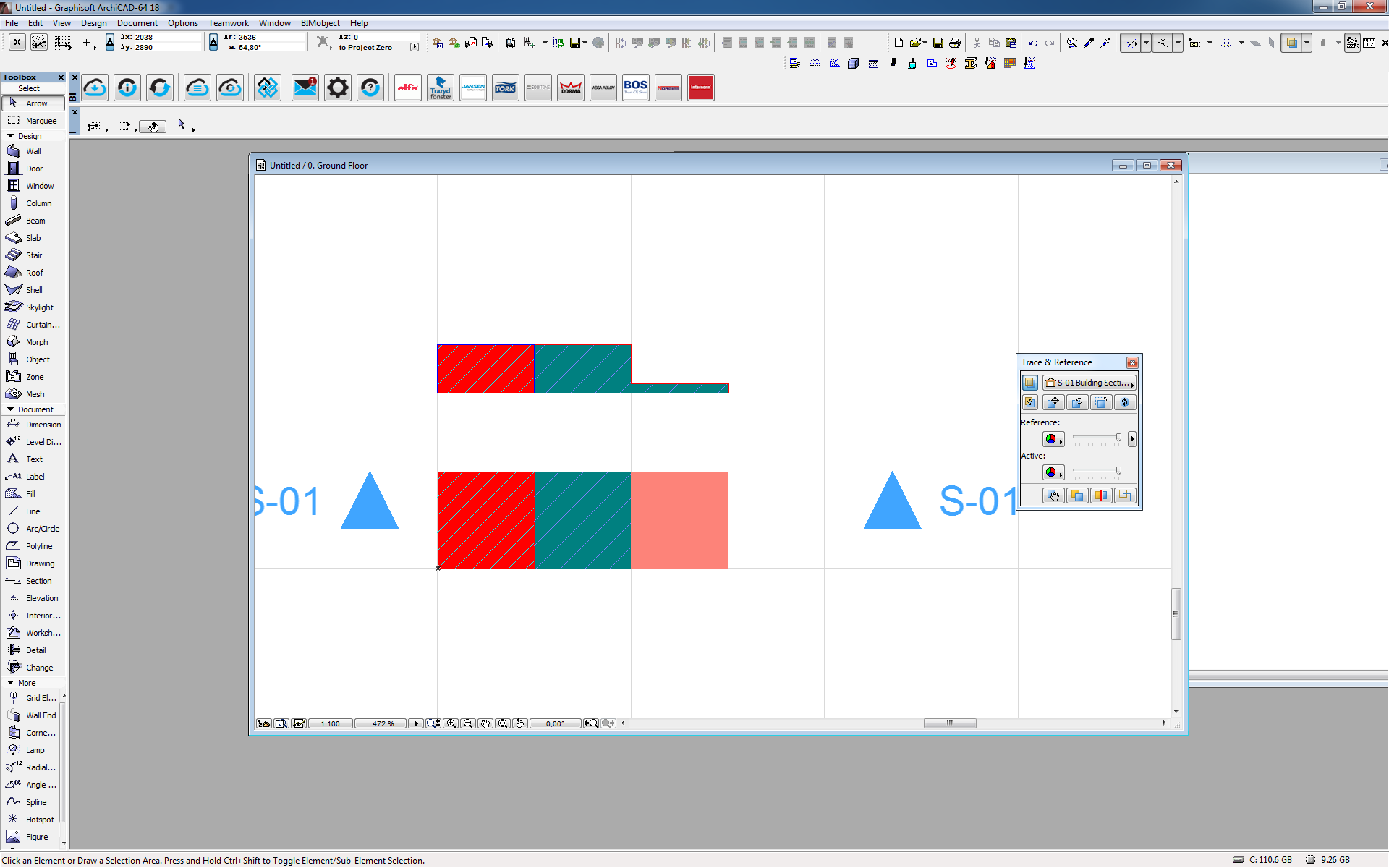

      In AC18 and AC19 it works fine but if I check the object in AC20 or AC21 it looks different.

      2D:

      pen 25
      set fill 15
      line_type 1

      project2{3} 3, 270, 3+32*0, 1+4

      3D:
      pen 75

      addz 0.5
      cutplane{2} 0, 1
      del 1
      material 36
      sect_fill 1, 20, 40, 6
      block 1, 1, 1

      addx 1
      material 8
      sect_fill 4, 10, 11, 20
      block 1, 1, 2

      addx 1
      material 1
      sect_fill 4, 10, 11, 20
      block 1, 1, 0.1
      del 1
      del 1
      cutend

      Thanks in advance
      Orsolya

      Attachments:
    • #3964
      Barry Kelly
      Participant

      Are you opening exactly the same file in all versions or are you just placing the object in the template (or any file) for 18 and then the template (or any file) for 20?
      If two separate files are the attributes the same in both files?
      Seems to me you might have different attributes for the same index numbers.

      Barry.

      Versions 6.5 to 22
      Dell XPS- i7-6700 @ 3.4Ghz, 16GB ram, GeForce GTX 960 (2GB), Windows 10
      Dell Precision M6800 - i7 4700MQ @ 2.40GHz, 16GB RAM, AMD FirePro M6100 (2GB), Windows 7 64bit

    • #3965
      Orsolya Almer
      Participant

      Hi Barry,
      No, I am affraid that is not the problem.

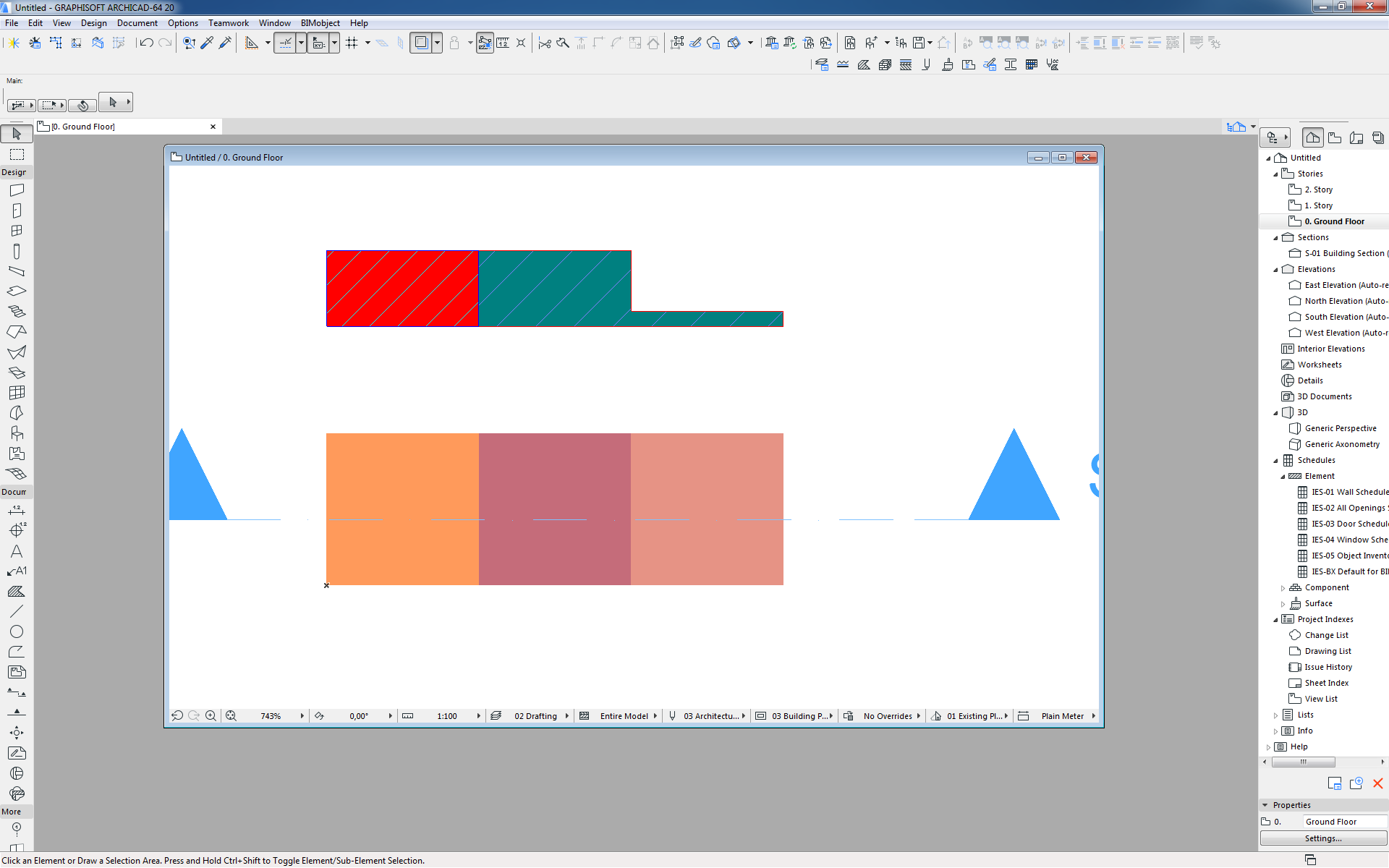

      In version 20 and 21 you see the colors of the surfaces not the sect_fill set attributes.
      As if the method 32 would be always active.
      Thanks
