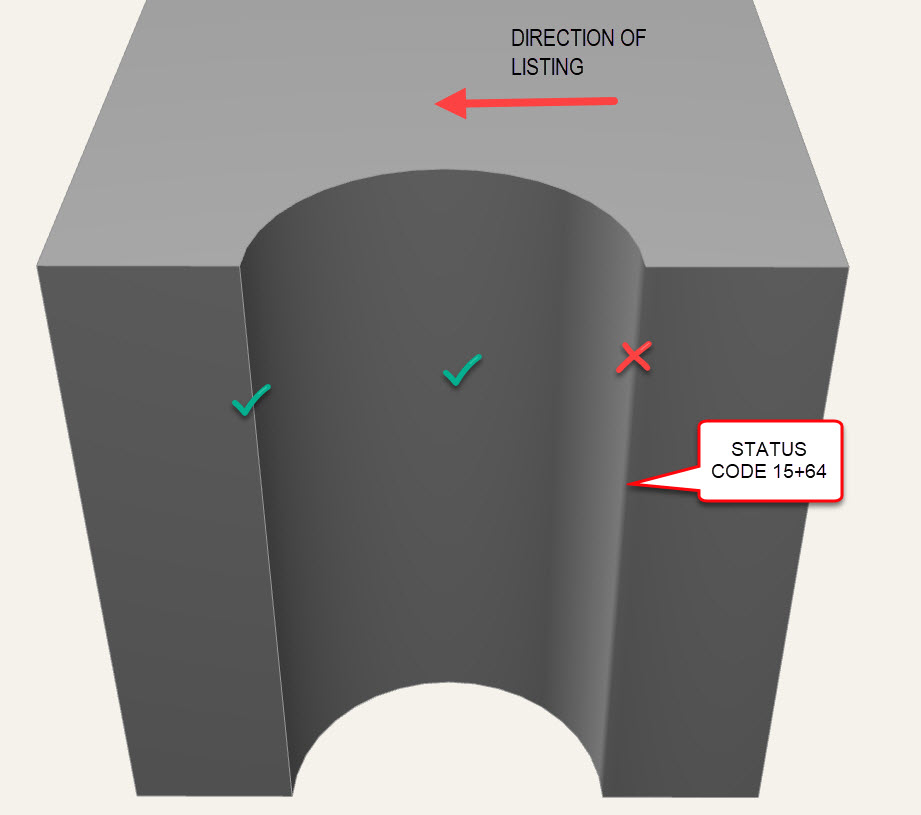

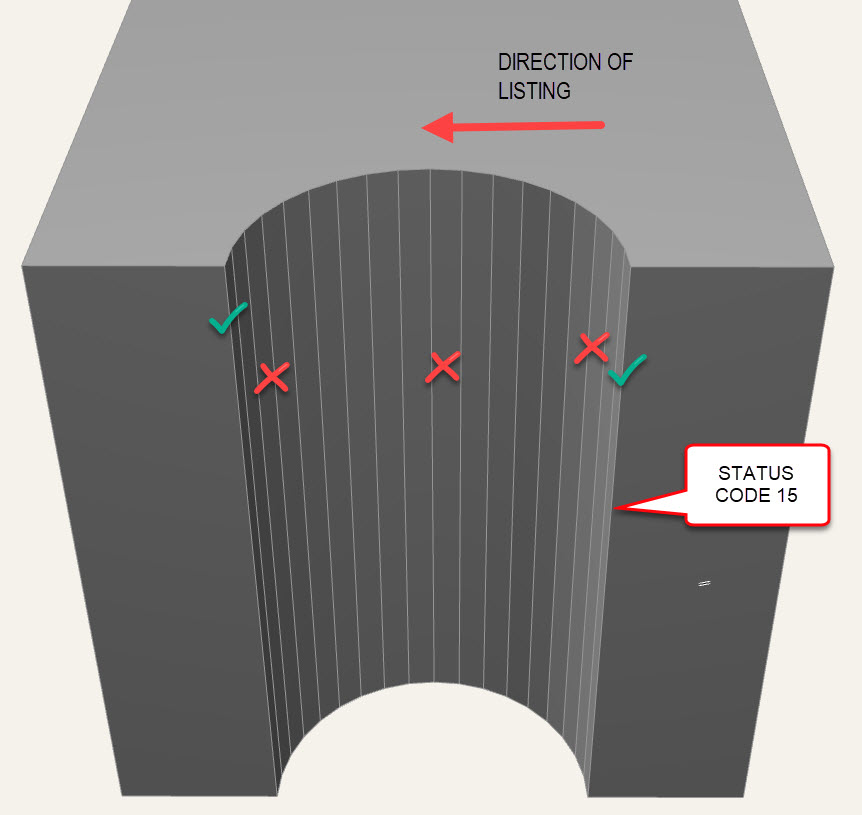

      What’s the trick to transitioning from a sharp edge to a smoothed edge? I want sharp edges at the curve ends, but smoothed edges within the curve itself (see attached images).

      Code

      	PRISM_ 7, 1,
      		0, 0, 15,
      		0, 1, 15,
      		0.25, 1, 15,
      		0.5, 1, 900,
      		0, 180, 4015,
      		1, 1, 15,
      		1, 0, 15

      www.brucepwalker.com
      https://www.mindmeister.com/65450406

      AC20 6005 AUS Full & AC 21 3009 NZE Full | Win 10 Pro 64 | Intel i7-7700HQ 2.80GHz | 16 Gb RAM
      NVIDIA GeForce GTX 1060 8Mb

    • #4668
      Péter Baksa
      Keymaster

      Hi,

      the trick is CPRISM_{3} with mask 8.

      CPRISM_{3} 0, 0, 0,
      		8, 7, 1,
      		0,	0,	0, 15,		0,
      		0,	1,	0, 15,		0,
      		0.25,	1,	0, 15,		0,
      		0.5,	1,	0, 900,		0,
      		0,	180,	0, 4015,	0,
      		1,	1,	0, 15,		0,
      		1,	0,	0, 15,		0

      Péter Baksa
      Library Platform, Software Engineer
      GRAPHISOFT SE

    • #4671
      Bruce Walker
      Participant

      Thanks Peter – this is it.

      Is there a way to set the material for the whole CPRISM without having to set it for each line (I don’t think so)? With the code you’ve supplied (thank you), a preceding MATERIAL command will only set the top and bottom materials.

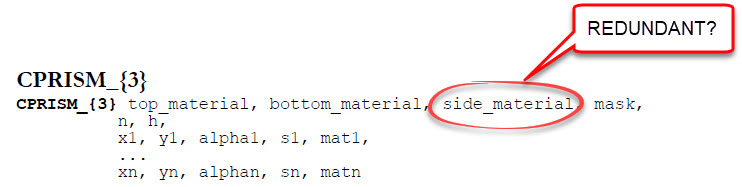

      Also, the ‘side_material’ listing at the command level seems redundant, as this has to be set for each coordinate line. Am I reading this right?

      www.brucepwalker.com
      https://www.mindmeister.com/65450406

      AC20 6005 AUS Full & AC 21 3009 NZE Full | Win 10 Pro 64 | Intel i7-7700HQ 2.80GHz | 16 Gb RAM
      NVIDIA GeForce GTX 1060 8Mb

    • #4678
      Péter Baksa
      Keymaster

      You have to set the material on each edge, 0 uses the current pen. Yes, side_material looks redundant, I don’t know why it is there.

      Péter Baksa
      Library Platform, Software Engineer
      GRAPHISOFT SE

    • #4745
      Piotr Dobrowolski
      Participant

      There is a “quick and dirty” way to make the “all in one” surface material on anything…it may slow down the object:
      The trick uses the container as in bolean operations: the last one with the smallest description ;P : CREATEGROUPWITHMATERIAL

      Piotr
